DCM224 power module

Dual output supplementary DC power module

177.00

Out of stock

SKU: 00018 Category:

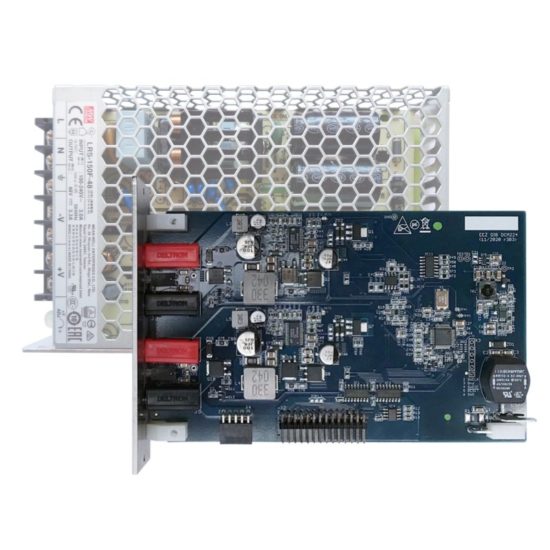

The DCM224 module is designed as a supplementary power module that offers two DC sources for up to 24 V and 4.9 A and it has no advanced features like the DCP405 module. The total combined output power is 155 W and is limited by the AC/DC converter used at the input.

Its outputs are floated towards the MCU module ground, however since they share the same DC power source they are not floated with each other so its outputs cannot be combined in series or split rails configuration as is the case with two single channel modules like DCP405.

This module can be installed in any of the BB3 slots in any combination with other modules, and when only they are used it is possible to get up to 6 DC source channels.

Package contents:

  • DCM224 module
  • Mean Well AC/DC power module
  • Mean Well terminal cover
  • AC power cable
  • PE (Protective Earth) cable
  • DC power cable

More info

Additional information

Weight 0.7 kg
Dimensions 22 × 15.5 × 8.5 cm
HS Code

85043180

Country of origin

Croatia (HR)

EAN code

0717995451259
