LED/relays programming codes





Notes:

  • The Remote sense (VOLTage:SENSe) is forbidden when channels are grouped in serial (SYSTem:GROup:SERial).
  • Before channel grouping in serial or parallel all outputs has to be switched off (OUTPut OFF). New output enable can follow only after 20ms guard time that is required for relay contacts to stabilize (debouncing).

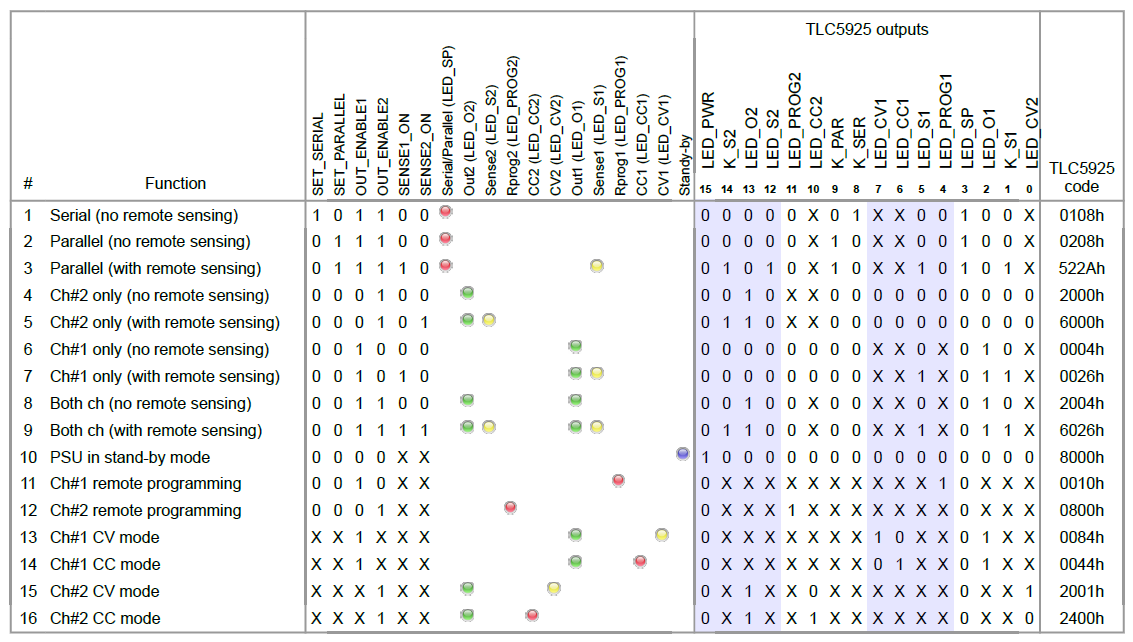

TLC5925 programming codes
Size: 199.7 KiB
Version: r3B3
