Conversion to HTML

Conversion to HTML


A work in progress


Although OpenOffice/LibreOffice offers saving of .odt file as HTML, the WebPublish is also equipped with HTML conversion since it still can generate a slightly better output. The difference can be found comparing two output files printed as PDF, first generated by WebPublish and another saved to HTML directly in OpenOffice Writer.


The WebPublish HTML profile has parameters shown in Fig. 1. and explained in the following table:

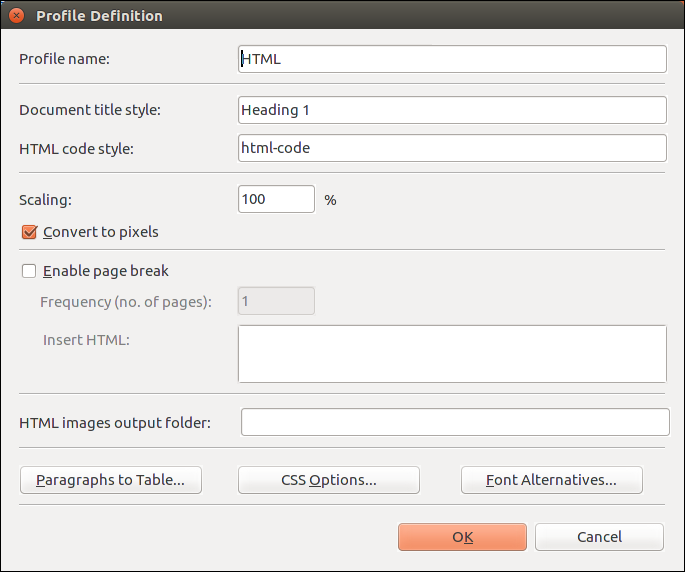

Fig. 1: HTML profile settings



Profile name

User defined profile name that will be displayed in the list of all available HTML profiles when WebPublish option for HTML conversion is selected.


Document title style



HTML code style




Output document scaling factor in percentage of original value. For example, if original font size is 12 pts with scaling set to 75% resulting font size is 9 pts.


Convert to pixels

Use this option to specify displayed units that can in millimeters (mm) or pixels (px). Conversion to pixels depends of above mentioned Scaling.

For example, generated .Caption style without this option has margin attributes specified in mm:


.Caption { text-align: center; margin-top: 2.12mm; margin-bottom: 2.12mm; font-size: 10.0pt; font-style: italic; }


… and with this option pixels are used for units:


.Caption { text-align: center; margin-top: 8.0126px; margin-bottom: 8.0126px; font-size: 10.0pt; font-style: italic; }


Enable page break

Enable generation of page break.


Frequency (no. of pages)

Number of pages between to page break instance.


Insert HTML

Custom HTML code that will be inserted as page break.

For example:


=== PAGE BREAK ===


HTML images output folder

Destination folder for storing images found in document.


See also Advanced features
